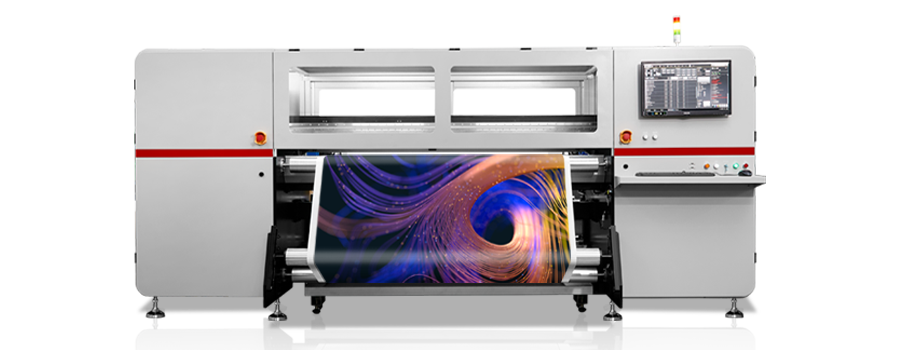

4-8Heads & 1.9m Sublimation Textile Printer
ApplicationSPORTSWEAR, INDOOR DECORATION, BEDDING, BAGS AND SHOES, UNDERWEAR AND SWIMWEAR, FASHION CLOTHING
Get A Quote
| Printhead | 4-8pcs print heads (Kyocera single / dual channel optional) |
| Production mode | 600×600dpi(1pass)504m²/hr |
| Color | Cyan, magenta, yellow, black, orange, blue, fluorescent yellow, fluorescent pink, Lm, Lc, turquoise (optional) |
| Ink | Disperse ink |
| Color Mode Support | 4, 6, 8 colors optional |
| Ink Tank Volume | 15L |
| Media Type | Dye Sublimation Paper |
| Maximum Printing Width | 1800mm |
| Maximum Media Width | 1900mm |
| Available Material Weight | Minimum 31g/m² |
| Maximum UnwindRoll Weight | 1tons (Full Width) |
| Maximum Unwind Roll Diameter | 1 meter |
| Drying Method | Constant temperature hot air drying |
| Voltage(Power) | AC380V±10%, three-phase 11.5A( 6KW) 50Hz/60Hz |
| Dryer Voltage(Power) | AC380V±10%, three-phase | 14A(9.3 KW) | 50Hz/60Hz |
| Air Supply Pressure Flow | 0.6mpa | 1m³/hr (dry without oil or water vapor) |
| Temperature Range | 20-28 degrees Celsius (68-77 degrees Fahrenheit) |
| Humidity Range | 45-60%(no condensation) |
| Net Size of Printer | 3945mm x 1000mm x 1718mm (L*W*H) |
| Printer Packaging Size | 4180mm x 1500mm x 2160mm (L*W*H) |
| Jumbo Feeder Net Size | 2403mm x 1200mm x 1100mm (L*W*H) |
| Jumbo Feeder Packaging Size | 2590mm x 1620mm × 1450mm (L*W*H) |
| Installation Site Size | 4500mm × 4500mm (L*W) |
