The position of the print head can be adjusted according to different printing medias, and anti-collision devices at both ends.

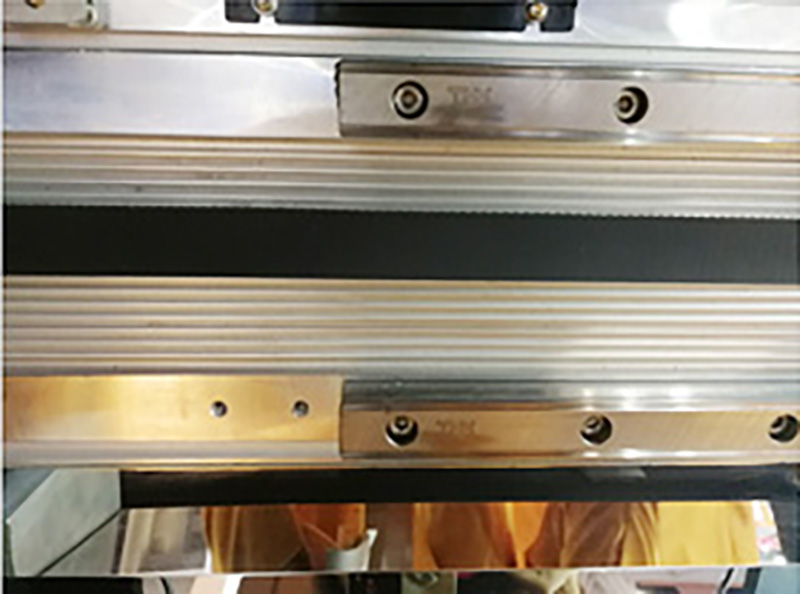

The printing platform is controlled within ±7.5 wires and the surface hard oxidation treatment, no deformation for a long time.
US fluororubber pressure roller prevents static electricity.The unique lifting device can respond to the phenomenon of partial paper bulging during the printing process.
| Printer Model | BJS08-1900 |
| Printhead(Type) | EPSON I3200-A1 |
| Printhead(Nozzle Qty) | 8pcs printheads |
| Printhead(Height to Platform) | 2-5mm |
| Printing Speed | 1pass 320sqm/h |
| Printing Speed | 2pass 180sqm/h |
| Ink(Color) | C M Y K |
| Ink(Type) | Dye Sublimation |
| Ink(supply method) | Siphoning |
| Max Printing Width | 1900mm |
| Printing Media | Transfer Paper |
| Media Transfer Method | Auto air shaft feeding and take-up system |
| Drying Method | External,Intelligent and air-heat Integrated drying system |
| Moisture Mode | Fully sealed auto moisturing and cleaning |
| RIP Software | Maintop6.0,Photoprint,Onyx,Wasatch and NeoStampa and etc. |
| Image Format | JPG,TIF,PDF,BMP and etc. |
| Work Environment | Temperature 20-35 centi degree; Humidity 35-65% |
| Power(Input Voltage) | 210-230VAC 50/60HZ 16A |
| Dimension(Printer Dimension) | 3710*1500*1940mm |
| Dimension(Packing Dimension) | 3860*1660*1325mm |
| Weight(Net Weight) | 950KG |
| Weight(Gross Weight) | 1000KG |
